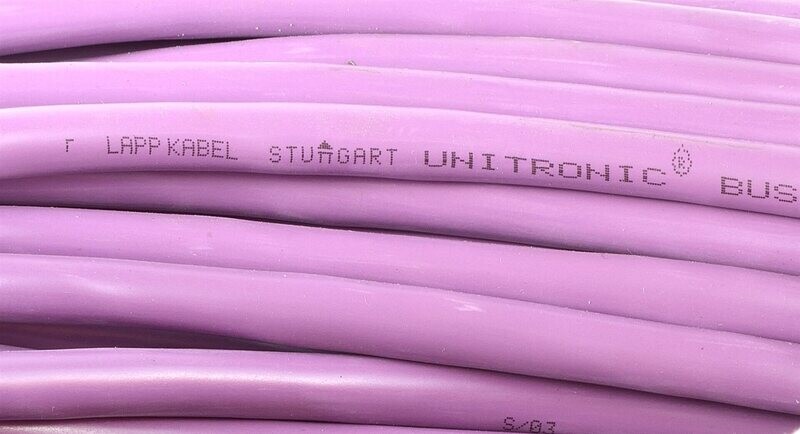

UNITRONIC BUS PB 1X2X0,64 (100M) / 2170220
+3
+2

UNITRONIC BUS PB 1X2X0,64 (100M) / 2170220

Store / Crane Cables
$250.00
In stock
Product Details
Brand: Lapp Cable

Application Range:

  • For fixed installationMaximum electromagnetic screening
  • Dry or damp rooms
  • Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant

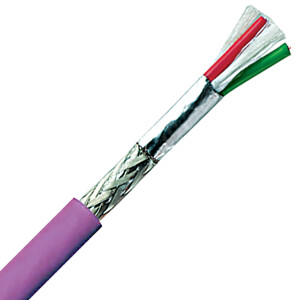

Product make-up:
  • FC: Fast Connect cable design
  • 7-W: 7-wire,�e.g. for applications where vibrations occur
  • PE: polyethylene outer sheath, black
  • P: PolyurethaneH:�Halogen-free�
  • COMBI: Data transmission andpower supply in one cable
Norm references / Approvals:
  • In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
  • See below for UL certification type
Product features:
  • These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
  • Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
  • (cable type A, PROFIBUS-DP):
  • 93.75 kbit/s = 1200 m
  • 187.5 kbit/s = 1000 m
  • 500 kbit/s = 400 m
  • 1.5 Mbit/s = 200 m
  • 12.0 Mbit/s = 100 m
Show More
